Networking

wifi

See step 4: configure wifi & ports of the quickstart guide.

ethernet

To network the Fluksometer in ethernet mode, connect the ethernet cable to the WAN port. Select the ethernet option on the network configuration page.

3G

When wifi or ethernet are not a viable networking option you can insert a 3G stick into the Fluksometer’s USB port. Make sure to power the FLM with the provided 15V AC power supply.

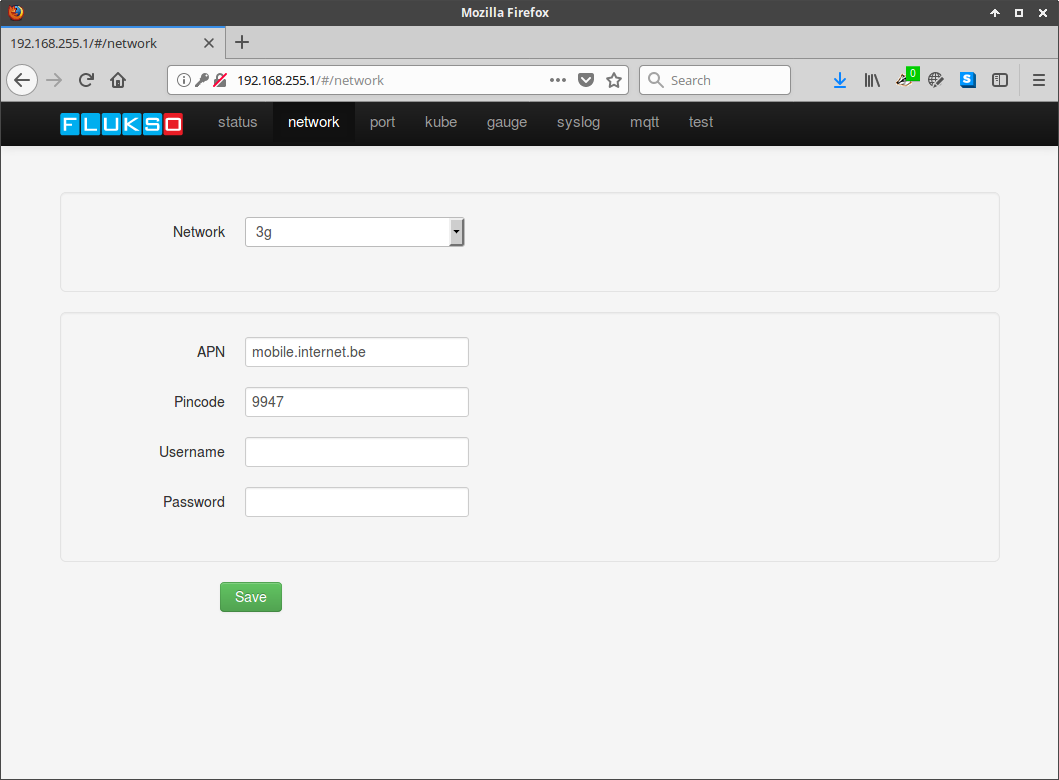

Configure the APN and pincode on the network page. Username and password may be required for certain providers.
